HT81x - Business Analog Converters

The HT813 is an analog telephone adapter that features 1 voip-to-analog telephone port (FXS ) and can accept 1 regular analog phone line (FXO) in order to offer backup lifeline. The integration of a FXO and FXS port enables this hybrid ATA to support remote calling to and from the traditional phone line (PSTN ). For added flexibility, the FXS port extends VoIP service to one analog device. Users can convert their analog technology to VoIP thanks to the HT813’s ultra-compact size, HD voice quality, advanced VoIP functionality, high-end security protection and multiple auto provisioning options. These advanced features also allow service providers to offer high quality IP service to customers looking to upgrade to VoIP

• Support 2 lines
• Lifeline support (FXS port will be hard-relayed to FXO port) in case of power outage
• 3-way voice conferencing per port
• Supports T.38 Fax for reliable Fax-over-IP
• Failover SIP server automatically switches to secondary server if main server loses connection
• Dual 100Mbps LAN and WAN ports

Designed for home or office users looking to connect their analog devices to a VoIP network, the HT814 is a powerful analog telephone adapter that is easily deployable and manageable. It comes equipped with 4 FXS ports and an integrated Gigabit NAT router.

• Support 2 lines and 4 conversation simulateously
• Supports T.38 Fax for creating Fax-over-IP
• Supports 3-way voice conferencing
• TLS and SRTP security encryption technology to protect calls and accounts
• Gigabit loop port or built-in NAT router which can handle routing speeds up to 1000MBps

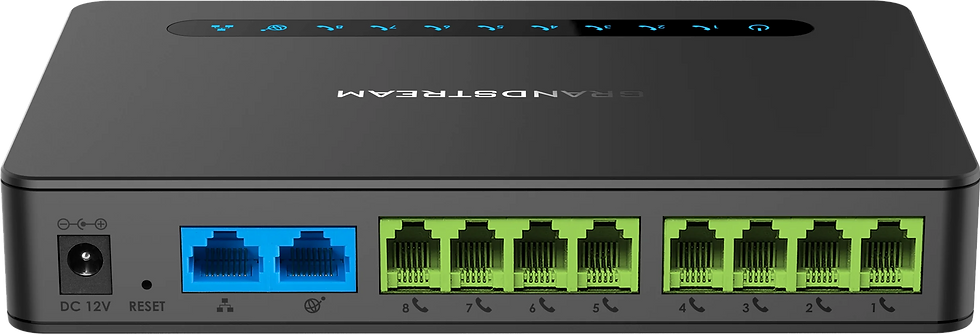

The HT818 is a powerful 8-port VoIP gateway with 8 FXS ports and an integrated Gigabit NAT router built for users looking for a robust analog-to-VoIP converter.

• Support 2 lines and eight conversations simultaneously
• Supports T.38 Fax for creating Fax-over-IP
• Supports 3-way voice conferencing
• TLS and SRTP security encryption technology to protect calls and accounts
• Gigabit loop port or built-in NAT router which can handle routing speeds up to 1000MBps

FXS (Foreign Exchange Subscriber) and FXO (Foreign Exchange Office) are two types of ports used in telephony systems to connect analog devices, such as phones and fax machines, to a digital network.



An FXS port is used to connect an analog device, such as a phone or fax machine, to a digital network. It provides power to the device and allows it to make and receive calls over the network.



An FXO port, on the other hand, is used to connect a digital network to an analog device. It allows the analog device to make and receive calls through the digital network.



In general, FXS ports are found on devices that connect analog devices to a digital network, such as ATAs (Analog Telephone Adapters) and PBX (Private Branch Exchange) systems. FXO ports are found on devices that connect a digital network to analog devices, such as telephone exchanges and PBX systems.
